transcable
Flexible, individually configurable system for cable fault location and diagnostics
The transcable is an automatic or semi-automatic, one- or three-phase cable fault location system. Through the modular design, the individually functional modules work independently from one another. This means that the transcable system can be easily extended at any time.
transcable offers a very diverse range of functions. In addition to the required testing technology for cable fault location and cable testing, the truesinus® technology enables precise and meaningful software-supported cable diagnostics with dissipation factor measurement and partial discharge testing.
Universal application
Due to its modular design, the transcable system enables the integration of multiple options such as a PHG VLF test system, surge voltage generators with different voltage ranges, or DC voltage testing up to 110 kV. The system therefore supports universal use, even on high-voltage cables and in offshore areas.

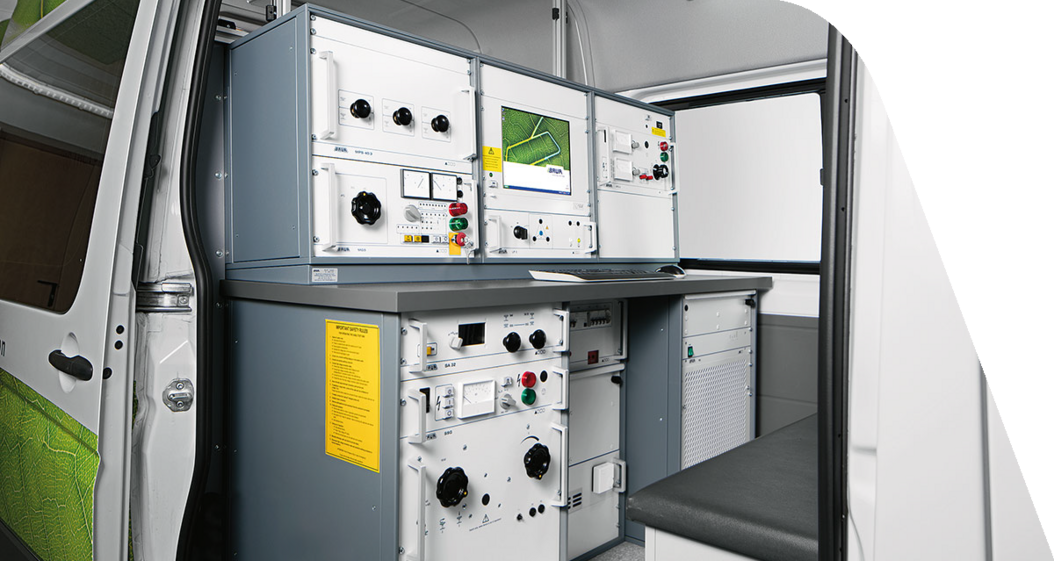

transcable cable test van from BAUR – modular equipment
Extendable Syscompact system
Semi-automatic transcable system, 3-phase, 110 kV
transcable system, 1-phase
Test van equipment – options that leave nothing to be desired
Examples of equipment details
01 |
Example of options in the high-voltage area: motorised cable drum rack, external emergency off unit, and TDR connection cable |
02 |

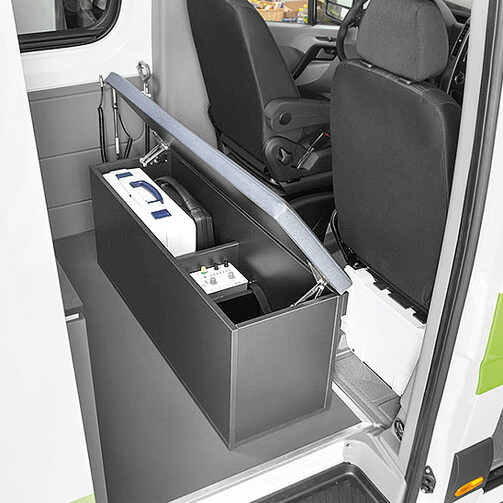

Example of optional seat console with storage space |
03 |

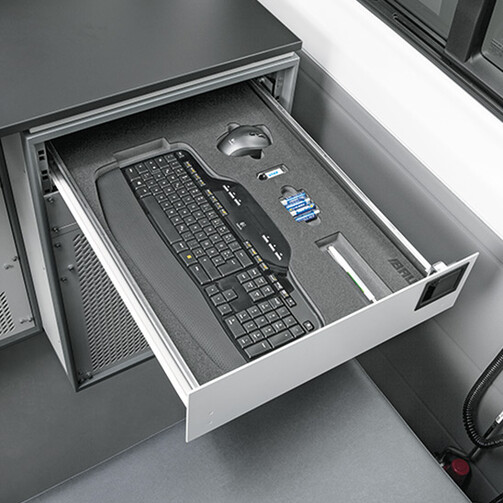

Example of optional drawer with matching inlay |
04 |
Example of an air conditioner |
05 |

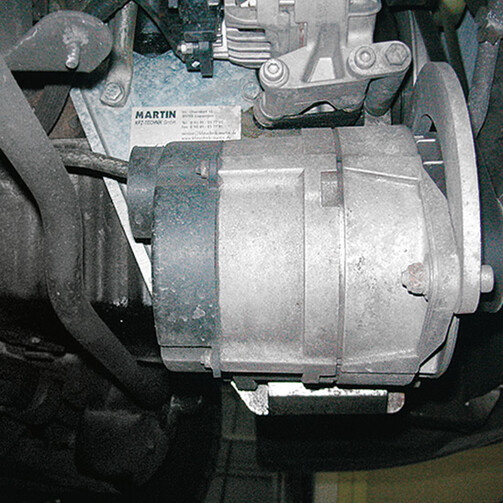

Example of a synchronous generator, underfloor |
06 |

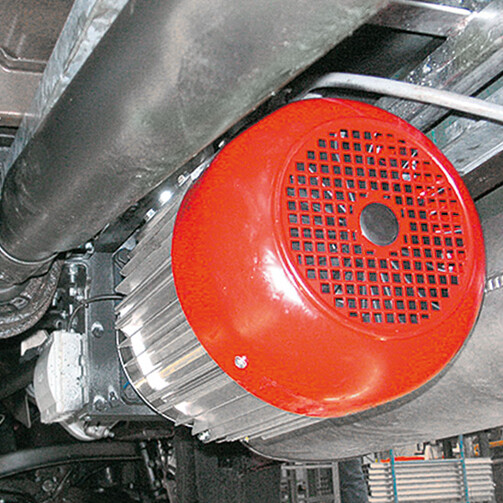

Example of an electronic generator |
07 |
Signal lamp |
08 |
Warning light |
09 |

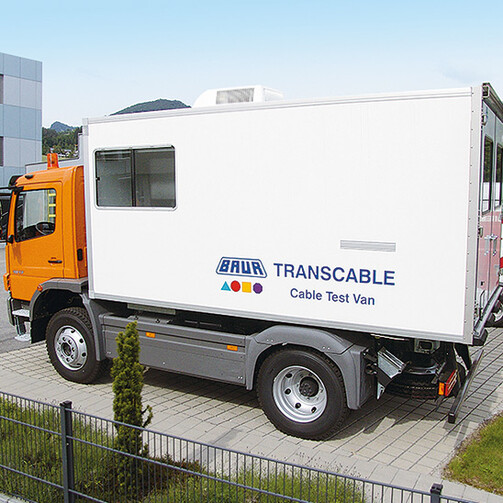

Test vans of all sizes are equipped by BAUR |
01
02
03
04
05
06
07
08
09
In terms of equipment and convenience, BAUR systems offer every option you can think of:
- Accessories for various fault location methods
- Diverse safety devices and protective equipment (e.g. isolation transformer)
- Cable drum rack with motor drive
- External emergency off unit according to EN 50131
- Heating or air conditioning systems
BAUR products for transcable
transcable 4000/A 80-3
Cable test van:
3-phase, automatic,
80 kV
transcable 4000/S 110-1
Cable test van:
1-phase, semi-automatic,
110 kV
transcable 4000/S 32-3
Cable test van:
3-phase, semi-automatic,
32 kV
transcable 4000/S 70-3
Cable test van:
3-phase, semi-automatic,
70 kV
