BAUR Syscompact 400
Simple and safe measurement
The Syscompact 400 is an efficient and safe cable fault location system for high-resistive and intermittent faults on all types of cable.
The biggest innovation is the high-performance IRG 400, which replaces its predecessor and is the perfect complement to the tried-and-tested system.
Safety was prioritised during development. Both the laptop and the tablet that are used to operate the IRG are connected to the device via Wi-Fi, allowing your measurement engineers to perform measurements from a safe location. Following measurement, the data can either be exported directly or the laptop simply taken into the office to evaluate the data there.
Syscompact 400 – the advantages
A precise cable fault location system
One device for all fault types
- Suitable for all voltage levels
- A compact system that covers well-established fault location methods
- Precise cable fault location for every type of fault and various cables
Data handling made easy
Measure, analyse, and evaluate with one system
- GIS data import and export on site
- Simple report generation
- Laptop acts as an operating control and as a working tool in the office
High degree of efficiency
Easy handling guarantees fast working
- Clean measurement data that is saved for future measurements
- Measured data can be compared with previously created fingerprint
- NEW: Large IRG display
- NEW: Intuitive, ergonomically designed BAUR BUI-F app
Safety for your employees
Fast and safe
- Integrated separation filter for safe measurement on live cables up to 400 V
- Wi-Fi connection allows remote operation outside the HV area
- Optimum galvanic isolation
Tried-and-tested technology with new power
The Syscompact 400 combines the tried-and-tested Syscompact solution with the newly developed, high-performance IRG 400, which can be controlled with either the large 15.6" laptop and BAUR Software 4 or with the 10.1" tablet and new touch-operated BAUR BUI-F app.
In the previous version, the IRG was stored in the drawer. It is now integrated directly behind the drawer as a 19" plug-in unit. This allows the laptop or tablet to be stored in the drawer. The laptop and tablet can be removed in order to perform measurements. Thanks to the Wi-Fi connection, it is also possible to position yourself and the device in a safe and convenient location.
Operating the Syscompact 400
BAUR Software 4
The tried-and-tested software for cable fault location
The full flexibility of the software provides maximum support during measurement processes while also giving users the option to utilise their own expertise and select user-specific procedures at any time. The BAUR Software 4 includes well-established measurement methods for cable fault location as well as innovative approaches such as Conditioning-SIM/MIM, enabling even faster and more effective localisation of wet cable faults that are difficult to locate.
The new BAUR BUI-F app
Discover the next generation of cable fault location.
The ergonomic design of the user interface and intuitive touch operation make the new BAUR BUI-F app a highly efficient operating control. The high-contrast 1000 cd/m2, high-brightness display makes the IRG easier to operate, especially out in the open.
The new app also scores highly with its new functions. Distance-based damping simplifies the evaluation of far-away events, while Step TDR measurement has been developed for close-by events such as illegal branching.
Last but not least, operation via tablet and BUI-F delivers impressive flexibility. Thanks to the Wi-Fi connection, your measurement engineers can work from a safe and convenient location.
Syscompact 400: Suitable for every place of use
Mobile system or built-in unit

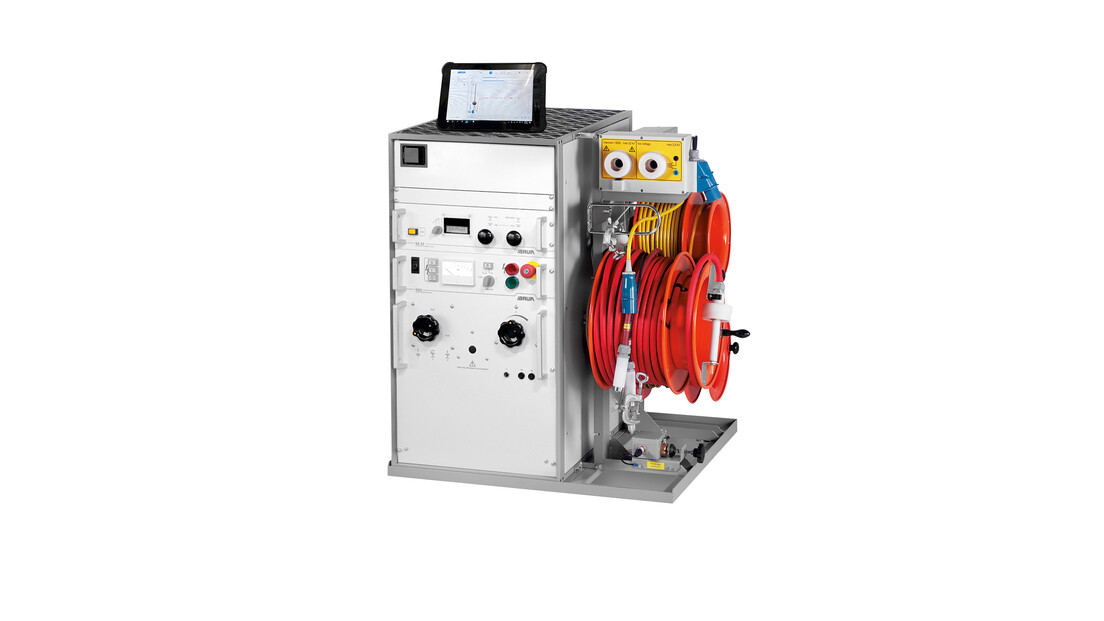

The Syscompact 400 is built into a container or vehicle, or supplied as a portable version with wheels.
Both systems can be controlled with a laptop or tablet.
What are you interested in?
Area of application
Maximum security of supply and fast solutions if required. A fault location system for cable systems with extremely high relevance and equipped for every task.
Integrated in a cable test van: Application at several places of use and ready for use in the fastest time possible
Integrated in a container: Immediate availability (when stored in the cable hall) and precise measurement results when positioned at both ends of the cable
Compact: All cable fault location methods integrated into a single system
Cable test van:
Fast transportation to place of use
Great flexibility of use
- Can be used at several places
- No loss of time due to transportation
- Immediate deployment in the event of a cable system failure
- Maximum reduction in downtime
- Marine configuration possible
System solution in a container
Area of application
Efficient measurement wherever you need it.
Sometimes the place of use is difficult to access, or there is simply no space for a large system. This is where cable fault location systems such as the portable Syscompact 400 come into their own. Especially when their design is so stable and resilient. The portable version of the Syscompact 400 is always at the ready and delivers the same level of performance as a built-in Syscompact solution. If the place of use is damp or space is tight, the laptop or tablet can be removed and operated from a more convenient location. The radio connection also provides optimum galvanic isolation.
An all-round system with maximum mobility
- Fitted with wheels and suitable for use in the field
- Can be used at any location
- Efficient measurement can prevent high downtime costs
Remote operation via Wi-Fi connection enables safe, protected working outside of the HV area
- Collects reference data quickly and easily, without tying up a system
- Straightforward data transmission to the office
Syscompact 400 portable
Media - Syscompact 400
Cable fault location on long submarine & underground cables
Since 2010, BAUR has been developing individual product solutions for fast and efficient fault location on long land and submarine cables. With the powerful systems and the comprehensive competence of the BAUR experts, critical cable faults on submarine cables have been located quickly, efficiently and precisely in recent years.
