SSG 2100
Surge voltage generator
Cable fault location with the BAUR SSG 2100
Surge voltage generators are used for pre-location and pinpointing of high- and low-resistive as well as intermittent faults in power cables. The energy stored in a high-voltage capacitor is released at regular intervals or as DC voltage. The thus generated acoustic signal at the fault position can be recorded with a ground microphone and a universal receiver.
- High surge voltage up to 32 kV
- Continuously adjustable voltage
- Voltage monitoring through kV meters with 3 measuring ranges
- Automatic discharge unit
Product Information
Literature
Data sheet
Product enquiry
Product overview
Supplementary:
IRG 4000
Time domain reflectometer (TDR)
for cable lengths up to 1000 km
SSG 1100
Surge voltage generators,
max. surge energy: 1100 J
Voltage: 0 – 8, 16, 32 kV

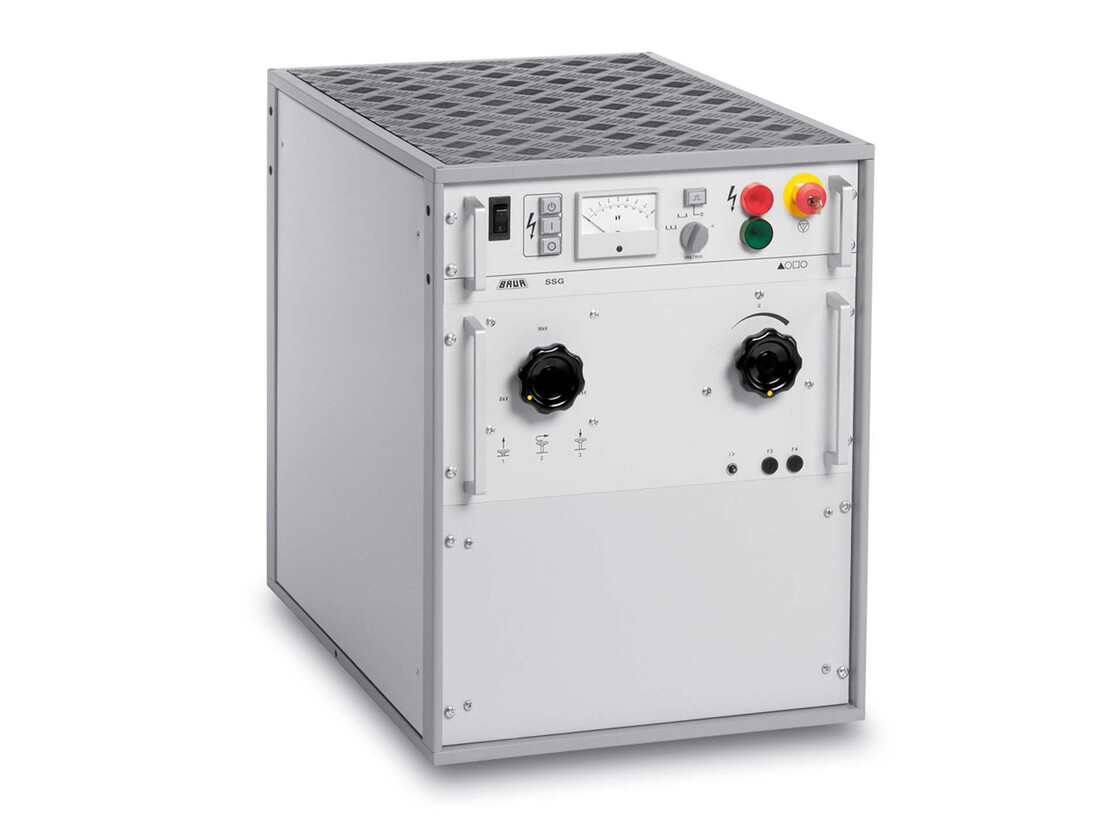

SSG 1500
Surge voltage generators,
max. surge energy: 1536 J
Voltage: 0 – 8, 16, 32 kV
SSG 3000
Surge voltage generators,
max. surge energy: 3000 J
Voltage: 0 – 8, 16, 32 kV
SSG 500
Surge voltage generators,
max. surge energy: 512 J
Voltage: 3 – 16 kV
