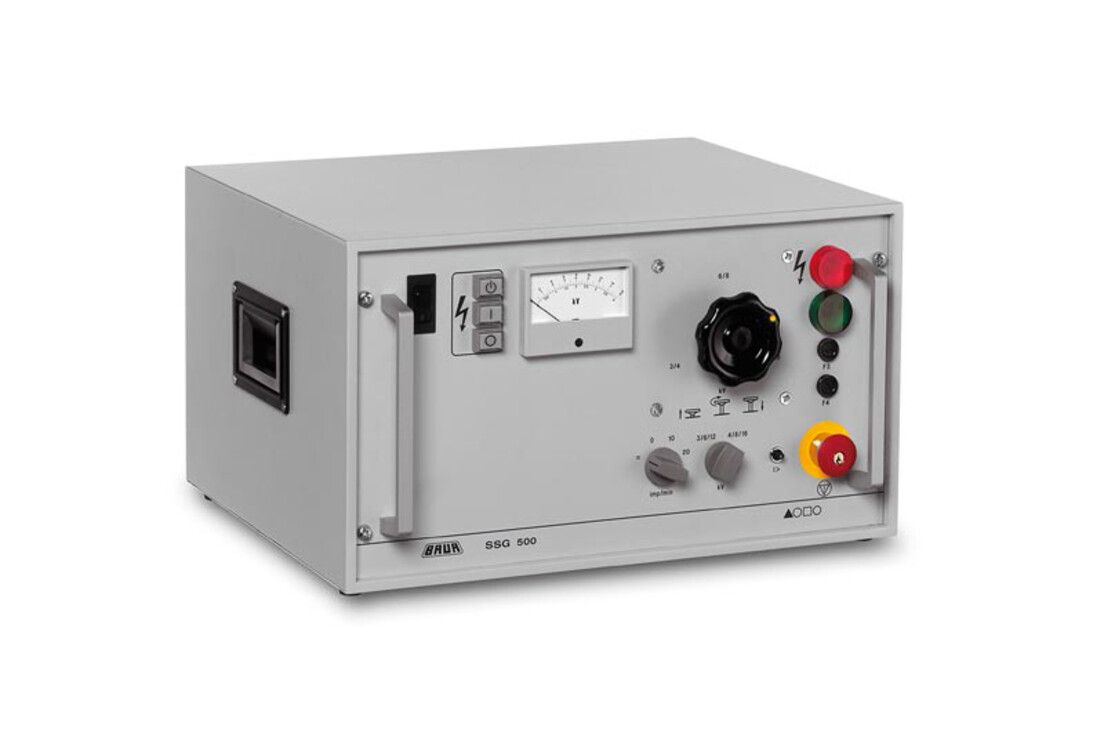

SSG 500
Surge voltage generator
Cable fault location with the BAUR SSG 500
The SSG 500 surge voltage generator is arranged in a 19'' housing. Maximum safety is achieved with the electrical safety control unit, the automatic discharge unit, the fully enclosed design and separate protection and system earth.
- 6 output voltages up to max. 16 kV available
- Electromagnetically actuated surge switch
- Preselectable surge energy: 288 / 512 Ws (in all voltage ranges)
- Automatic discharge unit
