BAUR software for the statistical estimation of the cable life time engineered by KEPCO.
Determine the remaining life time of cable routes
All asset managers aim to keep medium-voltage cables in service for as long as possible without jeopardising security of supply. BAUR has the solution: The new statex® analysis software evaluates the data from the dissipation factor measurement (tan δ measurement) and uses a patented algorithm to calculate the statistical remaining life time of cables – more accurately and clearly than ever before.
statex® – the BAUR innovation
Significant potential savings through maximum utilisation of medium-voltage cables
More accurate planning of investments year on year
Targeted measurements – better overview of the condition of the overall cable network
... and all while significantly improving security of supply!
The advantages of the statex® software at a glance
Condition of the cable network at a glance
Targeted investment planning
Accumulation of experience
Contribution to sustainability
statex® as a key element of cable diagnostics
Electricity is an essential part of our daily lives. That's why it's so important to keep the electrical infrastructure in good condition and guarantee security of supply. This would not be possible without cable diagnostics. BAUR brings together the latest and most precise tools for cable diagnostics under one roof.
Our product video explains the role that the statex® software plays in all this.
The statex® analysis software is used for the detailed determination of the ageing condition, the speed of ageing and the statistical remaining life time of a cable route based on the dissipation factor diagnostics with VLF truesinus® voltage (Very Low Frequency). Taking into consideration individual company guidelines and the visualisation of complex correlations between the various analysis parameters in a 3D matrix, statex® offers a new, ground-breaking option for cost-effective, operationally safe asset management.
statex® = statistics and experience
In addition to the conventional evaluation parameters of IEEE 400.2 (SDTD, MTD and ΔTD) , the statex® also takes into account a new parameter - TD-Skirt - which illustrates the time stability of the dissipation factor (TD). This makes it possible to calculate the ageing index R and the speed of ageing VR of the cable route. It is also possible to receive an exact recommendation for when a subsequent measurement should be performed, or when work is required on the cable route. The economical operating limit of the cable and a company-specific safety margin are also incorporated in the calculation, which determines the optimal point in time to replace the cable.
The statex® analysis software is used for the detailed determination of the ageing condition, the speed of ageing and the statistical remaining life time of a cable route based on the dissipation factor diagnostics with VLF truesinus® voltage (Very Low Frequency).
Taking into consideration individual company guidelines and the visualisation of complex correlations between the various analysis parameters in a 3D matrix, statex® offers a new, ground-breaking option for cost-effective, operationally safe asset management.
Diagnostic measurements and statistical analysis
Reliably predict the remaining life time of medium-voltage cables
With a consistent workflow from cable diagnostics through to evaluation, Baur GmbH provides asset managers with a solution for diagnosing the condition of medium-voltage cables. Statistical estimation of the cable lifetime now completes the package. Valuable knowledge regarding the remaining useful life enables investment in replacement cables to be planned more precisely and their implementation to be postponed for several years in many cases.
statex® Software licences at a glance
The statex® software packages allow you to select the version that best meets your needs – for maximum benefits in your everyday practice. The core version is a great place to start, while the pro version gives the best functional scope and software features. An additional licence allows you to use the pro licence on multiple PCs – for maximum information.
Comprehensive information on the statex® software
statex® explained quickly and simply
Watch this 2-minute product video to find out more about the application areas and functionality of statex®.
statex® as a key element of cable diagnostics
BAUR offers a range of products extending from measurement technology to analysis software, giving operators of medium-voltage networks all the tools they need to make optimal decisions when balancing the conflicting goals of network availability and cost efficiency.

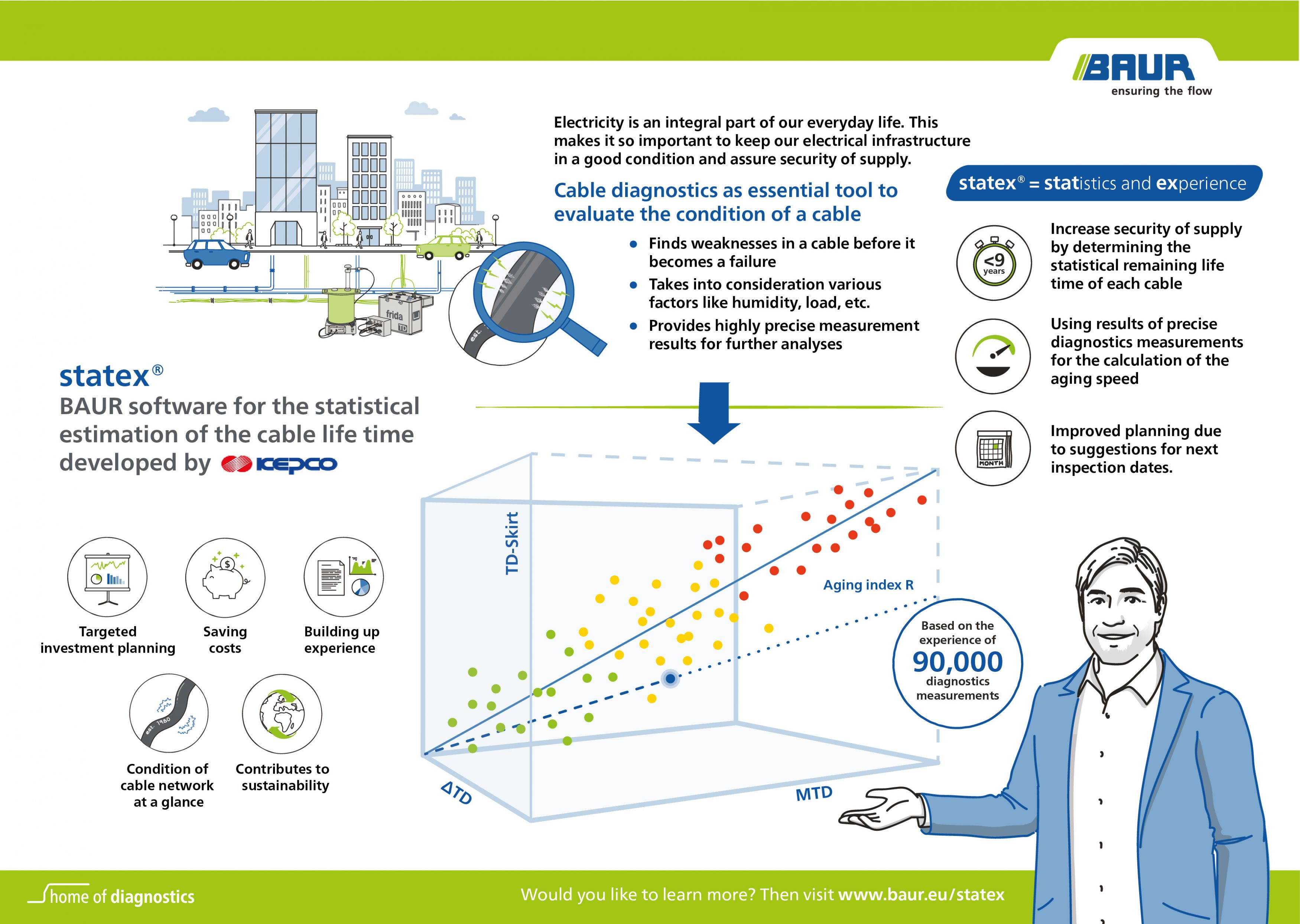

statex® at a glance
The key functions of the statex® software, as well as its application area and potential, summarised in one clear diagram.
