Process steps & methods: Fault analysis

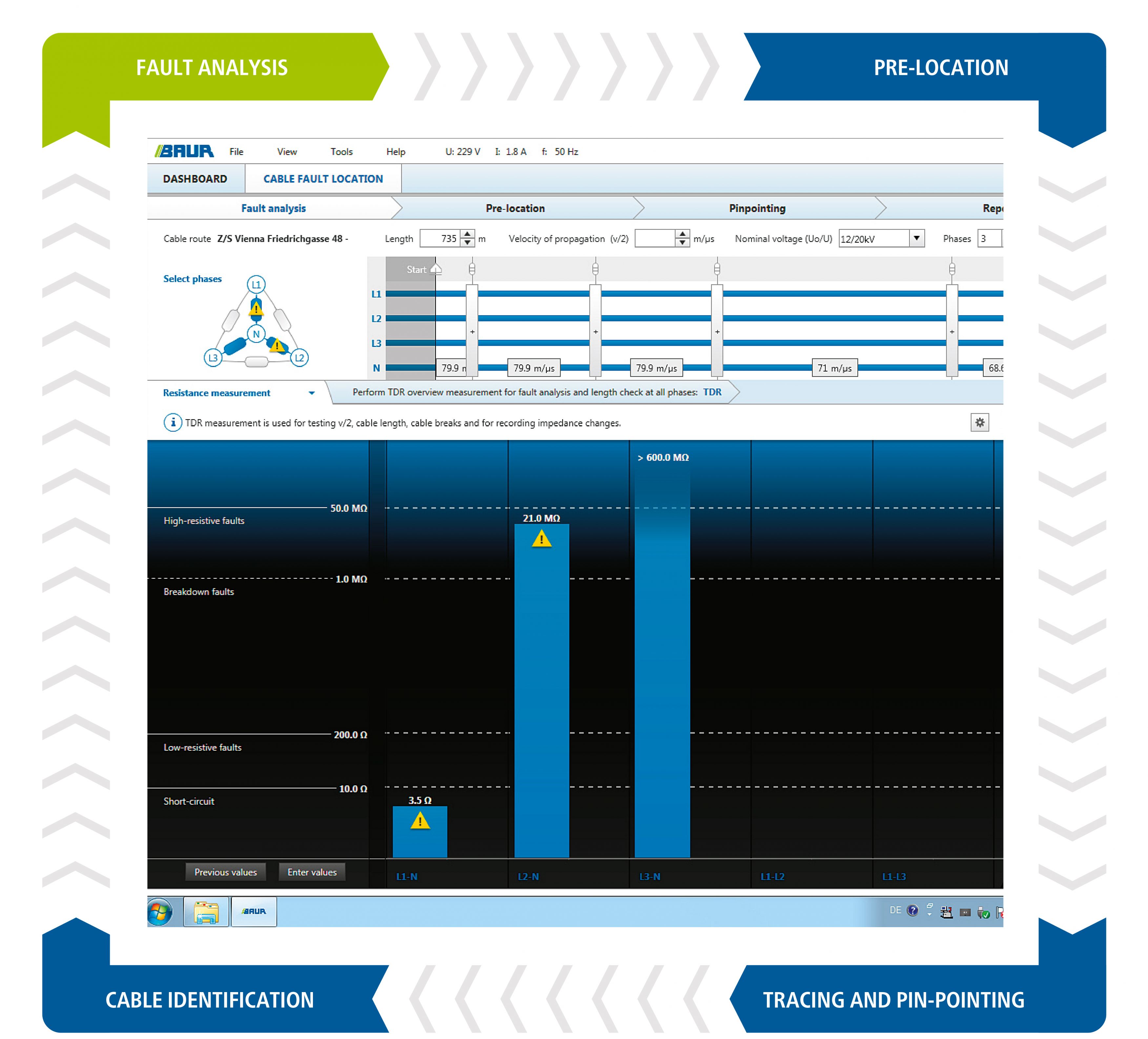

Fault analysis is used to ascertain the fault characteristics and determine the subsequent procedure and selection of methods for fault location.
Measurement methods for fault analysis in cable fault location:
Insulation resistance measurement
to determine the faulty phase and the type of fault.
Cable sheath testing
to detect damage to the outer cable insulation (cable sheath faults).
to test the dielectric strength of the cable insulation.
BAUR products for cable fault location / fault analysis
Syscompact 400 portable
Portable cable fault location system for cable fault pre-location and pin-pointing
